AOP-EP01-W

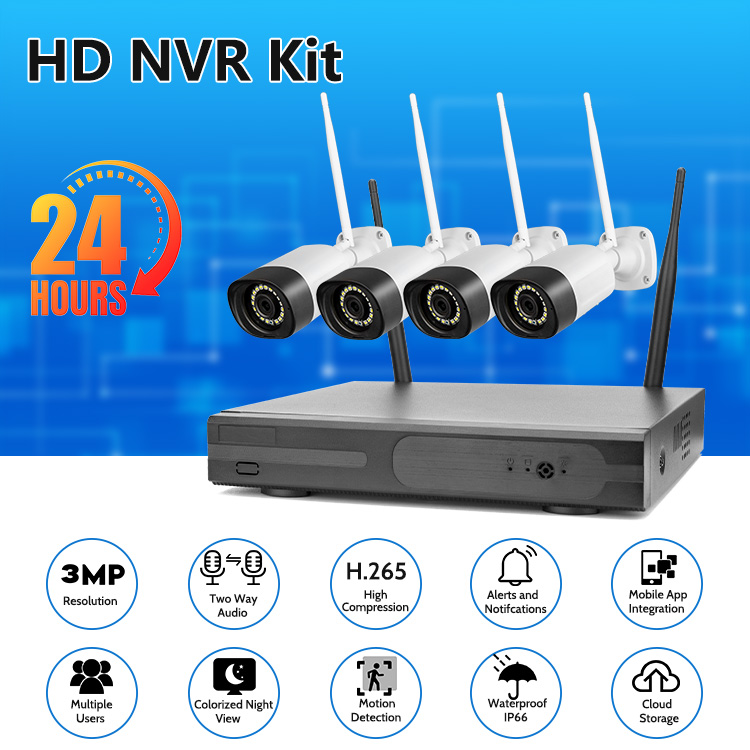

HD Resolution for 4CH Wifi NVR Kit

$ 81.55

HD Resolution for 4CH Wifi NVR Kit with Power Plug


Introduction

Specification

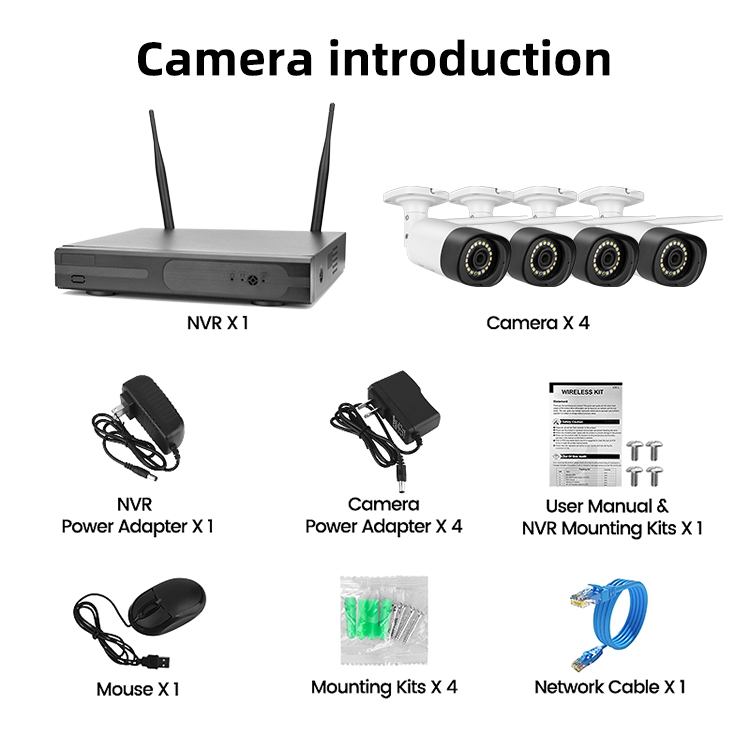

Accessories

Downloads


  • Product model:  AOP-EP-01

  • Product name:  4CH Wifi NVR Kit

  • Operating platform：4CH Android/iOS/CMS/IE

  • Sensor：1/3”CMOS Sensor

  • Pixel：2304*1296@15fps

  • Minimum illumination color ：colors：0.1 Lux,black/white：0.01 Lux

  • WIFI：1*4CH Wifi NVR+4*3MP Wifi Camera

  • NVR：4CH Wifi NVR

  • Record resolution(NVR)：5MP/3MP/1080P/720P

  • Playback(NVR)：3MP@4CH ; 5MP@1CH

  • Record：1*SATA  Hard Disk (Max 6TB)

  • Wifi Camera Pixel：3MP standard , 5MP(Optional) ,

  • Wifi Camera Resolution：2304*1296

  • Video compression：H.264,H.265

  • IR Distance：15 Meter

  • Camera Interface：1*RJ45 , 1*SMA

  • Camera power supply：DC 12V 1A

  • NVR power supply：DC 12V 2A


Data Storage Options
Cloud, Micro SD card
Function
Pan-Tilt, Alarm I/O, Reset, Night Vision, Waterproof / Weatherproof, Wide Angle, Full Color
Sensor
CMOS
Special Features
Night Vision, Waterproof / Weatherproof, Two-Way Audio
Style
wifi camera
Place of Origin
Guangdong, China
Lens
4mm
Pixels
3 MP
Viewing Angle
85
Model Number
AOP-EP01-W
Brand Name
Apepoch
Customized support
OEM, ODM, Software Reengineering, Customized Logo, Online Technical Support
IP Rating
IP65
Video Compression Format
H.265
Warranty
1 Year
Model
AOP-EP01-W
Product name
4CH Wifi NVR Kit
NVR
4CH 3MP Wifi NVR
NVR Video/Audio Output
1CH HD Port, 1CH VGA
Camera
4PCS 3MP Wifi Camera
Pixel
3MP
Camera lens
4MM
Code rate
Main stream:2304*1296,substream:720x480
Power Supply
DC12V power support
Storage
1 SATA Max 6TB


AOP-EP01-W
