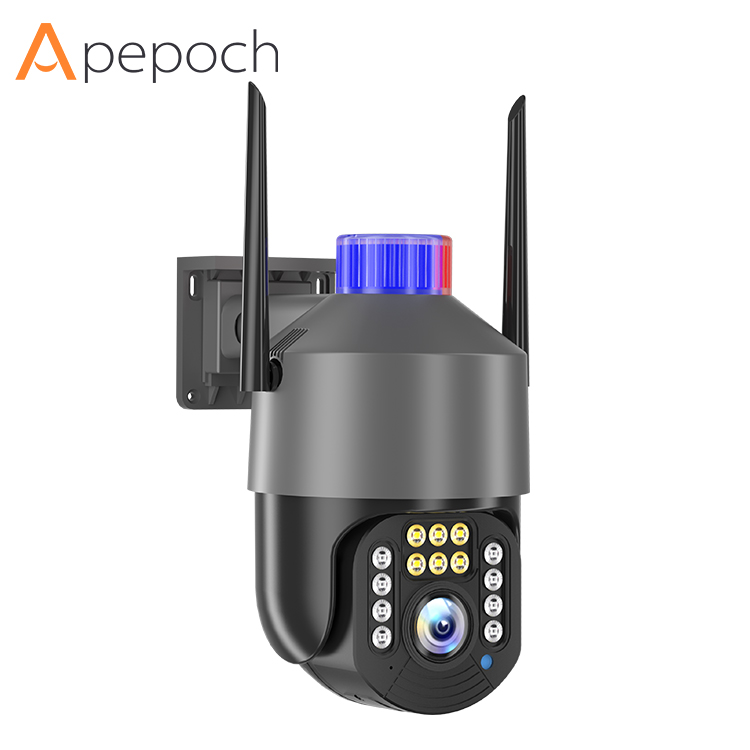

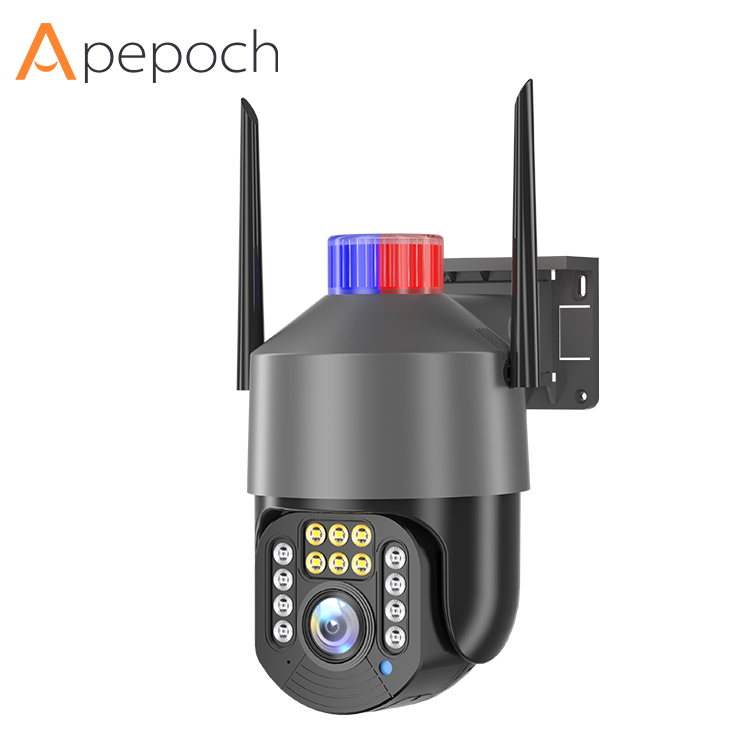

AOP-Q404F-GM1
3MP High Resolution 4G Camera
3MP ultra HD picture quality 4G Camera
Introduction
Specification
Accessories
Downloads
● 3MP ultra HD: ultra low bit rate video coding format, 3 million ultra HD picture quality.
● Internet connection: supports WiFi or 4G.
● Mobile tracking: Supports mobile tracking and humanoid tracking.
● Intelligent application: Humanoid detection/ Motion tracking
● Regional alarm: active defense, someone breaks into the alert area, active alarm.
● Alarm notification: When a moving object is detected, it will wake up in time to snap a picture and push the alarm.
● Sound and light alarm: Support sound and light alarm.
● Light control mode: infrared white light dual light design, support two night vision mode adjustable, to achieve full color at night.
● Two-way voice intercom: built-in high sensitivity MIC and speaker, support two-way voice intercom.
● Solar power supply can be connected to external solar panels.
● Mobile phone monitoring: Support iOS and Android mobile phone client remote monitoring.
| Model Number | AOP-Q404F-GM1 |
| Operating platform | Android/iOS |
| Number of online users | Three users view online data at the same time |
| Share users | Can share 100 users at the same time |
| Sensor | 1/3”CMOS Sensor |
| Pixel | 2304*1296@15fps(3.0MP) |
| Minimum illumination color | Colors: 0.1 Lux,black/white: 0.01 Lux |
| WIFI | 802.11b/g/n;WEP,WPA,WPA2 encryption / reticle |
| 4G | European/North America/Asia Pacific |
| Humanoid detection | Humanoid detection, accurate filtering of invalid alarms |
| Motion tracking | Support |
| More Al Features (in beta) | Pet detection, vehicle detection, package detection, fall recognition, etc |
| Storage TF card | Supports a maximum of 128GB storage |
| Global cloud storage | Support |
| Night vision | Automatic night vision, full color mode, intelligent white light |
| Compression format | H.265 |
| Code rate | 15fps |
| Frame rate | Brightness, contrast, vertical, horizontal adjustable, OSD display |
| Image adjustment | Support |
| Compression format | G.711 A-Law @16bits 8kbps |
| Speaker | Support |
| Key reset | Support |
| Alarm | Audible and visual alarm |
| The alarm sound can be customized | |
| Support motion detection alarm, humanoid detection alarm | |
| Power supply | 12V/1A、5V/2A |
| Operating environment | -10℃~+60℃ |
