AOP-PJ2822A

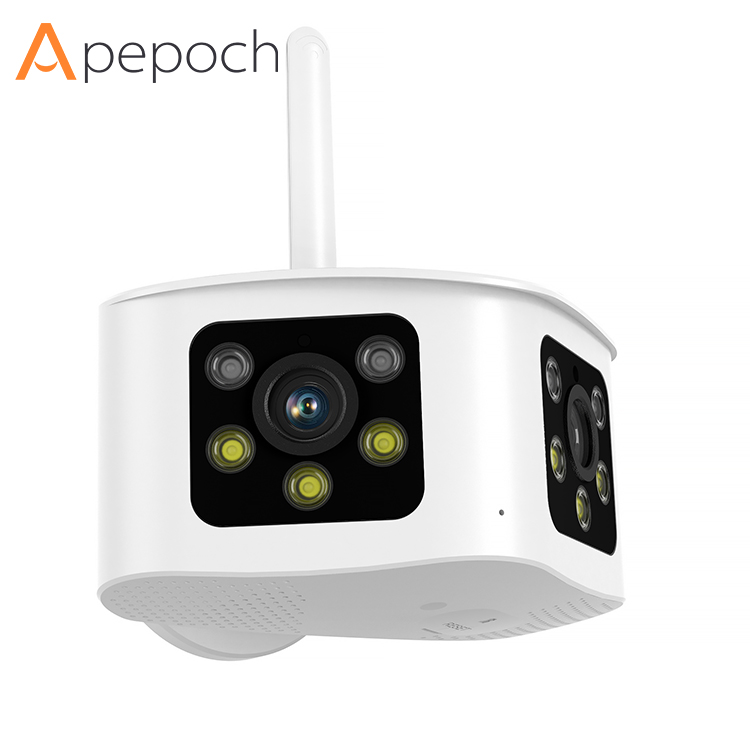

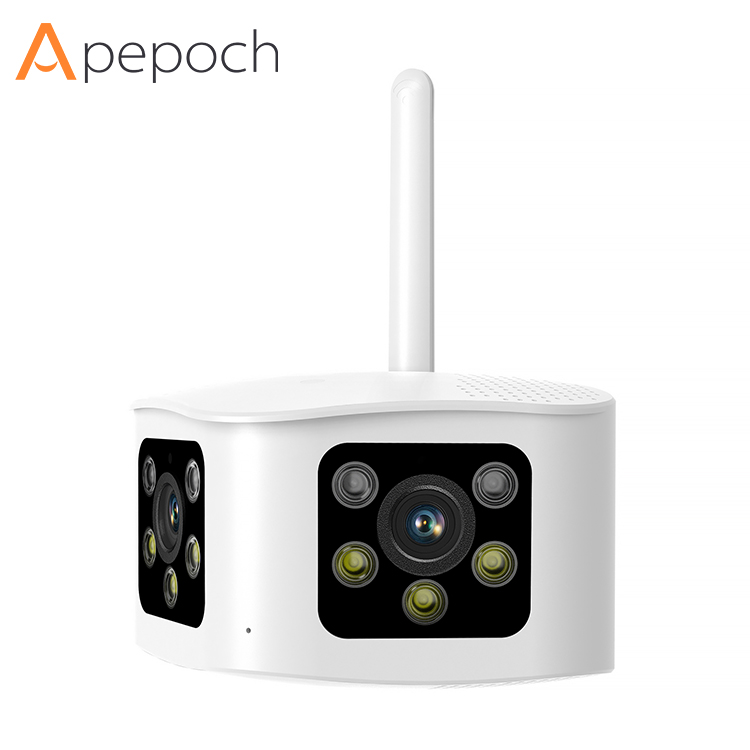

3MP+3MP Wifi Splicing Screen Camera
Introduction
Specification
Accessories
Downloads
●1296P ultra HD: ultra low bit rate video coding format, 3 million ultra HD picture quality.
● The Angle of view of the binocular splicing camera reaches 180° in the horizontal direction, and the large Angle of view has no distortion. One can realize large-scale monitoring and easily control the whole situation.
● Automatic cruise video screen automatic cruise, watch no dead corners.
● Intelligent application: humanoid detection
● Network connection:Support WiFi wireless connection/network cable /4G.
● Alarm notification: When a moving object is detected, the picture will be captured in time and the alarm will be pushed.
● Regional alarm: active defense, someone breaks into the alert area, the equipment takes the initiative to alarm.
● Video storage: MicroSD card (Max. 128GB)/ cloud storage
● Light control mode: infrared white light dual light design, support two night vision mode adjustable, to achieve full color at night.
● Two-way voice intercom: "built-in microphone and speaker, advanced compression algorithm to produce better sound quality, effectively reduce background noise. Enjoy with your family anytime, anywhere
Two-way live conversation (range 15 m)"
● Mobile phone monitoring: Support iOS and Android mobile phone client remote monitoring.
| Model Number | AOP-PJ2822A |
| Operating platform | Android/iOS |
| Number of online users | Three users view online data at the same time |
| Share users | Can share 100 users at the same time |
| Sensor | 1/3”CMOS Sensor |
| Pixel | 2304*1296@15fps(3.0MP) |
| Minimum illumination color | Colors: 0.1 Lux,black/white: 0.01 Lux |
| WIFI | 802.11b/g/n;WEP,WPA,WPA2 encryption |
| 4G | European/North America/Asia Pacific |
| Humanoid detection | Humanoid detection, accurate filtering of invalid alarms |
| Storage TF card | Supports a maximum of 128GB storage |
| Global cloud storage | Support |
| Night vision | Automatic night vision, full color mode, intelligent white light |
| Compression format | H.264 |
| Code rate | Main stream: 2048×1536,substream: 640x480(VGA) |
| Frame rate | 15fps |
| Image adjustment | OSD display |
| Built-in microphone | Support |
| Compression format | G.711 A-Law @16bits 8kbps |
| Speaker | Support |
| Key reset | Support |
| Alarm | Audible and visual alarm |
| The alarm sound can be customized | |
| Humanoid detection alarm | |
| Power supply | 12V/1A adaptor |
| Operating environment | -10℃~+60℃ |
