AOP-PQ2822A

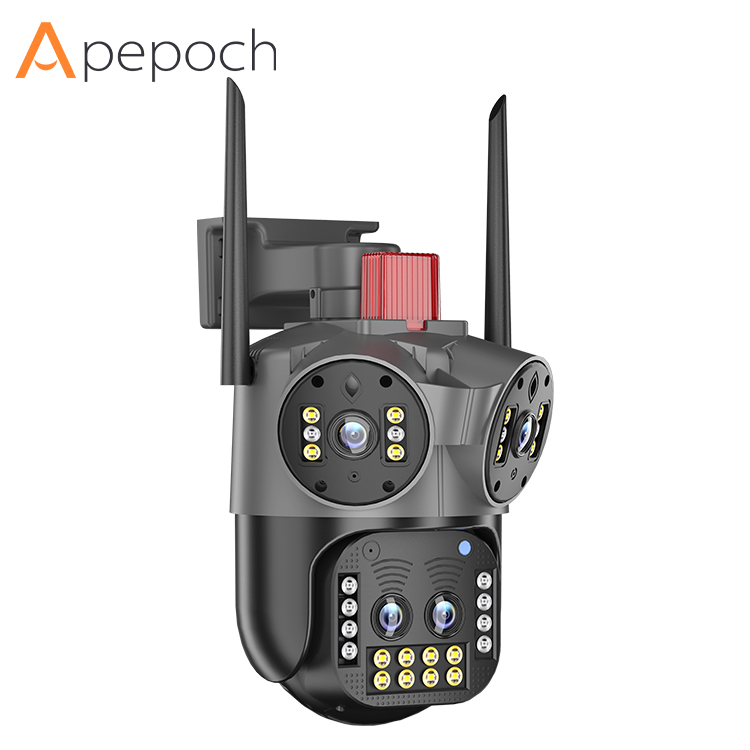

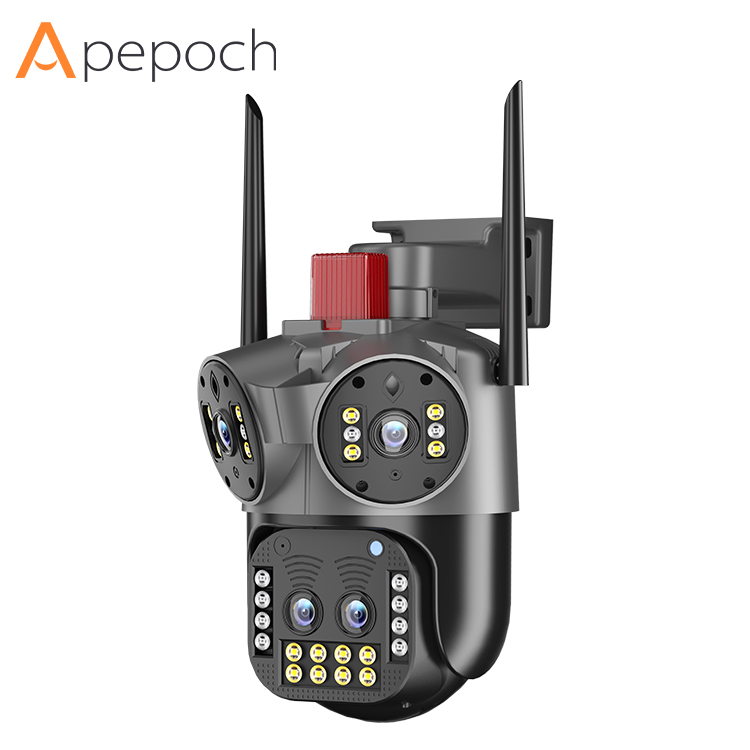

4*3MP Multi Lens 4G Camera

$ 0

4*3MP 4G PTZ Indoor/Outdoor use Camera with two way audio


Introduction

Specification

Accessories

Downloads

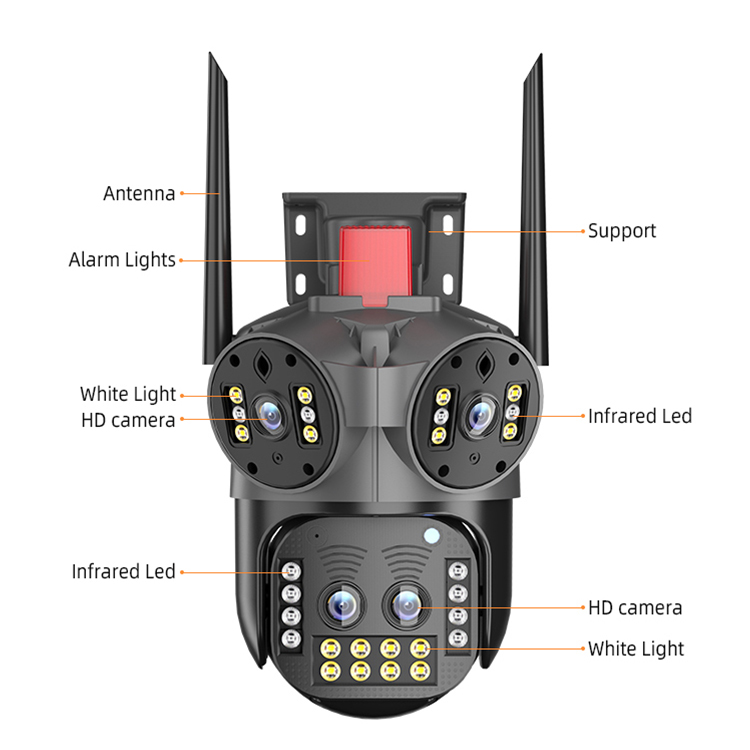

● Four cameras: Four cameras, three pictures on the same screen.

● Rapidly zoom, at maximum 12 times, near and far image switch, details at a glance.

●180° screen: 180° ultra-wide screen, panoramic view.

● After the target is selected in the bullet video screen, the dome will automatically focus on the selected target.

● The linkage tracking: dome lens locks the moving object of the bullet and automatically tracks it.

● Intelligent application: human detection/human tracking

● Network connection: Support WiFi wireless connection/network cable /4G.

● Alarm notification: When a moving object is detected, the picture will be captured in time and the alarm will be pushed.

● Sound and light alarm: active defense, someone breaks into the warning area, equipment sound and light alarm.

● Video storage: MicroSD card (Max. 128GB)/ cloud storage

● Light control mode: infrared white light dual light design, support two night vision mode adjustable, to achieve full color at night.

● Two-way voice intercom: "built-in microphone and speaker, advanced compression algorithm to produce better sound quality, effectively reduce background  noise. Can be anytime, anywhere with your family

Enjoy two-way live conversation (range 15 meters).

● Mobile phone monitoring: Support iOS and Android mobile phone client remote monitoring.


Model Number AOP-PQ2822A
Operating platformAndroid/iOS
Number of online usersThree users view online data at the same time
Share usersCan share 100 users at the same time
Sensor1/3”CMOS Sensor
Pixel2304*1296@15fps
Minimum illumination colorColors: 0.1 Lux,black/white: 0.01 Lux
WIFI802.11b/g/n;WEP,WPA,WPA2 encryption
4GEuropean/North America/Asia Pacific
Humanoid detectionHumanoid detection, accurate filtering of invalid alarms
Humanoid tracking Support
Gun-ball linkagePrecise linkage
Storage TF card Supports a maximum of 128GB storage
Global cloud storageSupport
Night visionAutomatic night vision, full color mode, intelligent white light
Code rateMain stream: 1920*1080,substream: 720x480(VGA)
Frame rate15fps
Image adjustmentBrightness, contrast, vertical, horizontal adjustable, OSD display
Built-in microphoneSupport
Compression format G.711 A-Law @16bits 8kbps
SpeakerSupport
Key resetSupport
AlarmAudible and visual alarm
The alarm sound can be customized
Humanoid detection alarm
Power supply12V/1.5A adaptor
Operating environment-10℃~+60℃
