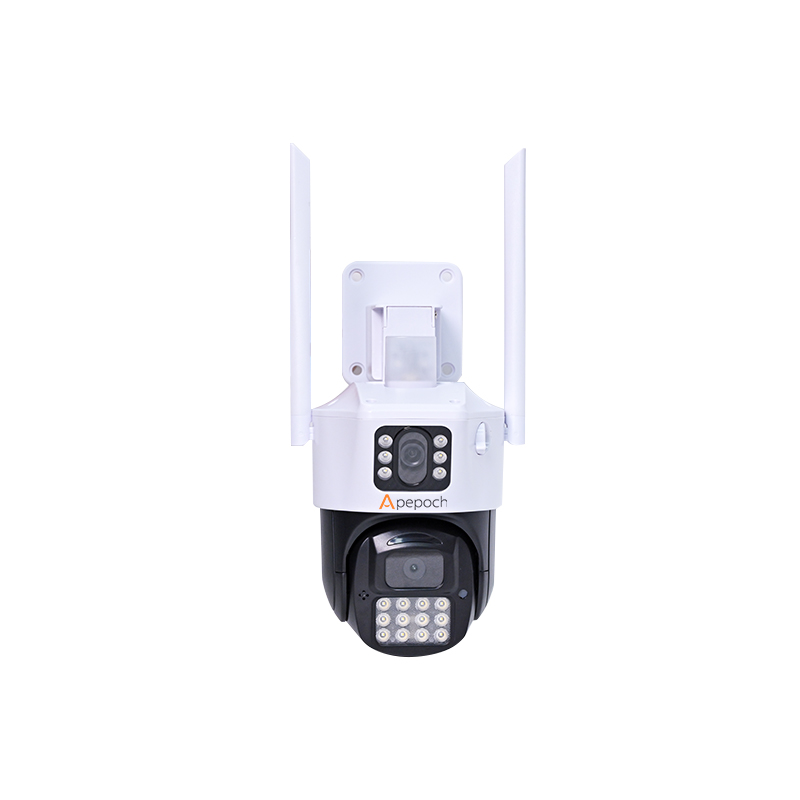

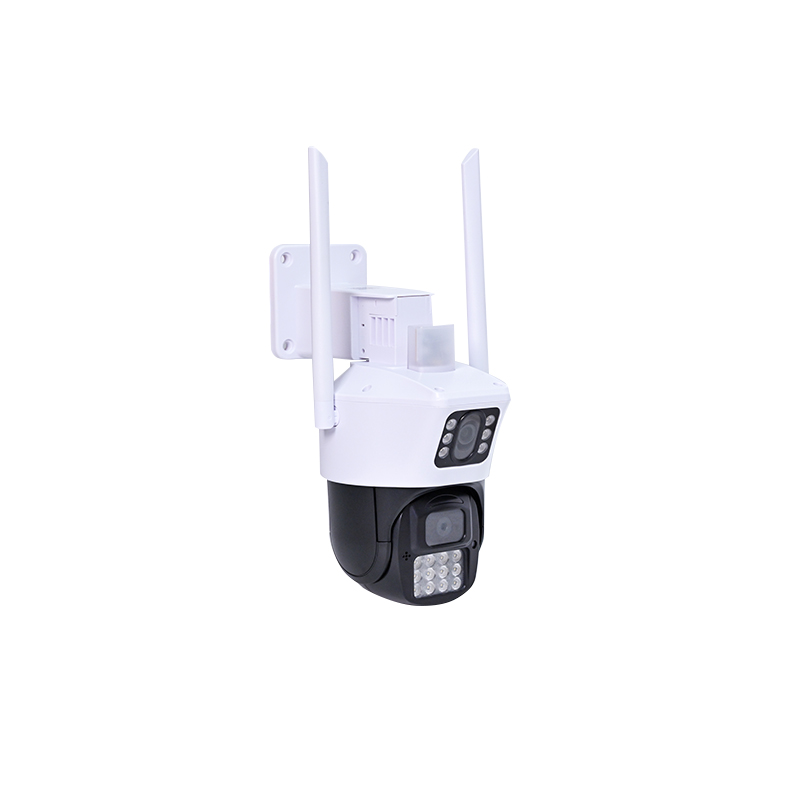

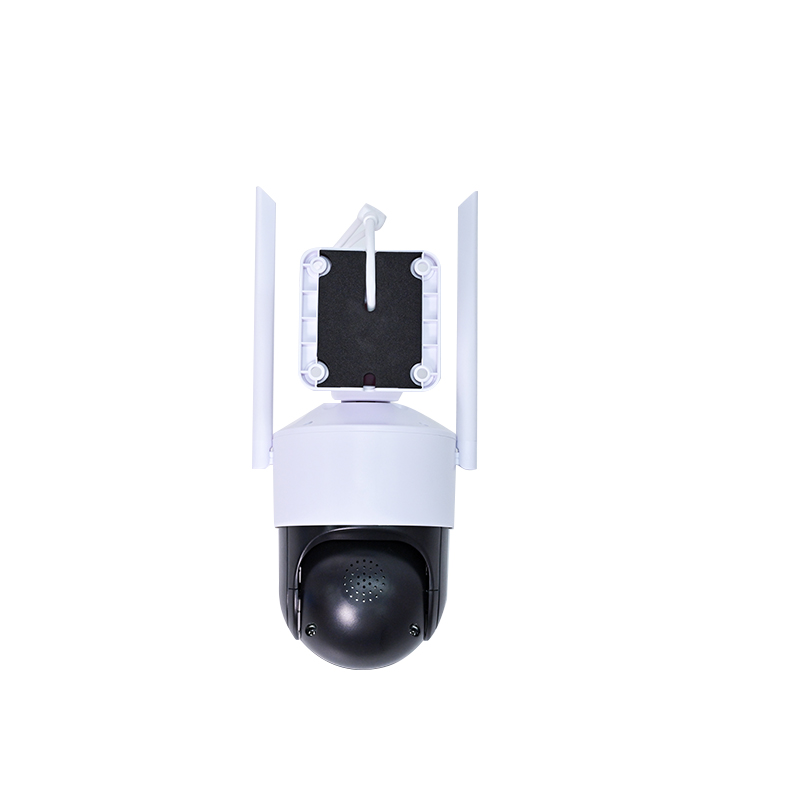

Dome and Bullet Linkage Camera
AOP-TCF106
Introduction
Specification
Accessories
Downloads
Product Model：
AOP-TCF106
Features：
Dome and bullet linkage camera：the bullet for full view, the dome locates to corresponding position
Smart object detection：detect people and cars in motion
Smart object tracking：moving people and cars can be tracked
24 meters ultra-long monitoring distance
Remote viewing: remote access anytime and anywhere
Privacy detetcion：TF card local storage
2-way audio: recording monitor, real-time intercom
Dual light sources: color night vision supported
Alert notifications pushed by smart phone
Application Scenarios：
Suitable for residential areas, scenic spots, campuses, highways, squares and other occasions
Technical Parameters
Product Model | AOP-TCF106 | |
Image Sensor | Sensor | Bullet camera: 1/2.8" 3.0MP CMOS; dome camera: 1/3" 2MP CMOS |
Max.resolution | Bullet camera：2304*1296; dome camera：1920*1080 | |
Min.illumination | Bullet camera：0.005Lux/F1.5 (color mode), 0.001Lux/F1.5 (b/w) ,0 Lux with IR Dome camera: 0.005Lux/F1.5 (color mode),0.001Lux/F1.5 (b/w) ,0 Lux with IR | |
Lens | Lens type | Prime lens |
Focal length | ||
Field of view | Bullet camera：horizontal 101°, vertical 54°, diagonal 119° Dome camera：horizontal 50°, vertical 27.5°, diagonal 58° | |
Night Vision Modes | IR night vision | Supported |
Color night vision | Supported | |
Smart night vision | Supported | |
Night Vision Distance | IR night vision | 30 meters |
Color night vision | 30 meters | |
Video | Resolution | Bullet camera: main bit stream 2304*1296, sub bit stream 800*448 Dome camera: main bit stream 1920*1080, sub bit stream 800*448 |
Video compression mode | H264 / H265 | |
Frame rate | 15fps | |
Audio | Input | Built-in MIC |
Output | Built-in speaker | |
Monitoring Range | Monnitoring distance | 24 meters |
Functions | Smart detection | Detect people and cars in motion |
Auto tracking | Tracking of moving people and vehicles can be configured | |
Multi-target tracking | Multiple targets can be tracked sequentially | |
Manual tracking | Interested targets can be manually tracked on App | |
Intercom | 2-way audio supported | |
Storage | Support up to 128G TF card storage, cloud storage | |
Local Storage | Recording standard | HD/SD optional |
Recording method | Manual recording, alarm recording | |
Recording view | Support video remote playback | |
Motors Control | PTZ | Pan 280°, tilt 95° |
Preset points | Supported | |
Network | WiFi | 2.4GHz |
Network interface | 10M/100M RJ45，support POE | |
Power supply | Power supply port | DC12V |
Others | Working temperature and humidity | -30~65℃，0~95% |
Waterproof grade | IP66 | |
Power consumption | Subject to actual application scenarios | |
size | Subject to the actual object | |
