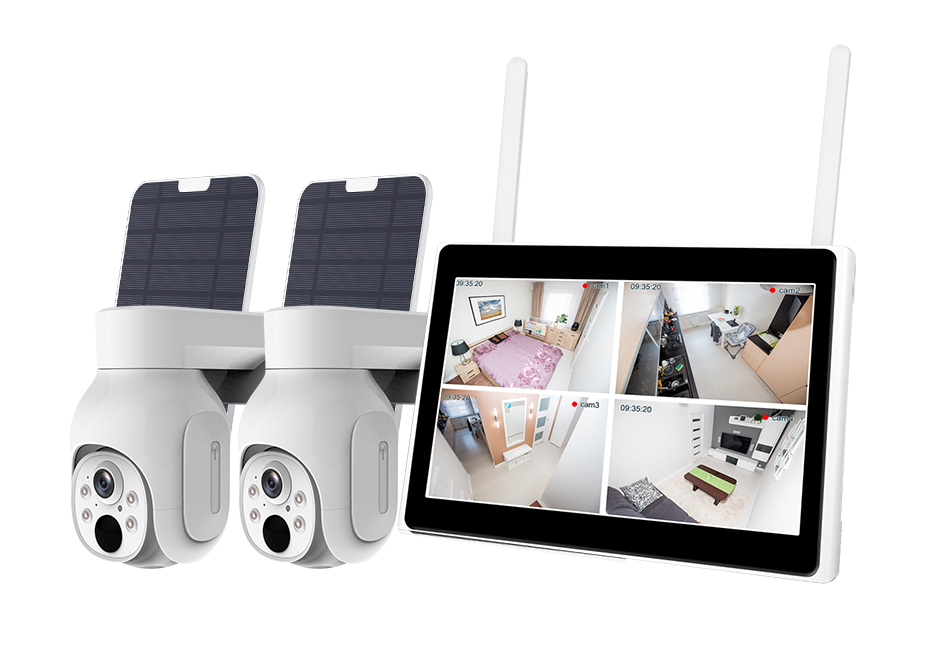

HD WIFI CAMERA 10.1 INCH KIT
AOP-WBKIT-02
Introduction
Specification
Accessories
Downloads
3MP HD HOME SECURITY MONITOR SYSTEM, IS WIDELY USED IN DIFFERENT ENVIRONMENT FOR EXAMPLE VILLA / INTERIOR /HOSPITAL /SCHOOL /SUPERMARKET /DEPARTMENT ETC; THIS CAMERA SYSTEM CAN BE EXTENDED TO 4 WIFI CAMERAS , AND SUPPORT OUR SOLUTION WIFI BATTERY CAMERA/ SOLAR CAMERA/ PT WIFI CAMERA/PT WIFI BATTERY CAMERA
* 4ch 3MP HD wireless 7 inch touch screen mini nvr kits
* 2.4GHz wireless transmission technology
* Automatic code pairing for convenient and real P2P application
* Support 1080P/3.0MP camera
* Motion detection, email alerts.
* Simultaneous viewing via web browser or smartphone for multiple

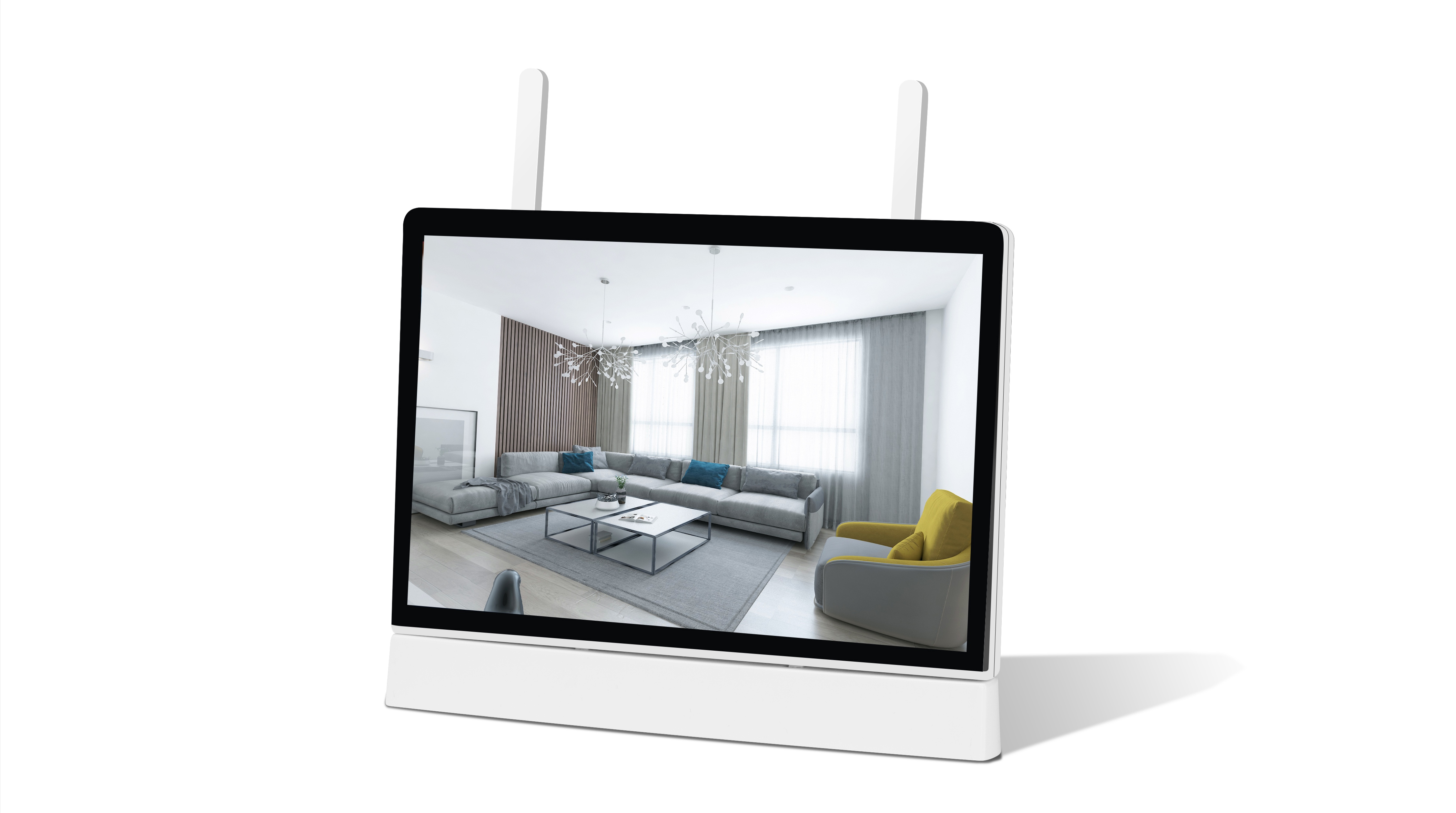

7 inch Touch-screen NVR Parameters :
Model | 7 INCH TOUCH SCREEN | |
4CH Wireless 3.0MP TOUCH SCREEN | ||
System | Operating System | Embedded Linux |
Video | Video compression | H.264 main profile level |
Video output | 3MP@25fps | |
Video input(IP) | 4*3MP/4*1080P | |
Audio | Audio compression | G.711 |
intercom | Two way audio | |
Record & playback | Recording mode | Manual recording, motion detection recording |
Local Playback | 4CH 1080P or 4CH 3MP synchronous playback | |
Storage & Backup | Record Storage | network |
Backup mode | Network backup, TF Card | |
Network Control | Protocol | HTTP,DHCP,UDP,RTP,FTP,NTP,SADP,P2P |
Wireless | Frequency | 2.4G |
Antenna Structure | Two 5dB antennas | |
Interface | Audio I/O | One way audio & Two way audio |
Alarm I/O | None | |
USB | 1*USB 2.0 port | |
TF Card slot | Max. 128GB | |
Other | Power supply | DC 5V /2A |
Power Consumption | 5W（Without HDD） | |
Work environment | Temperature:-10℃－＋55℃, Humidity:10%-90%RH | |

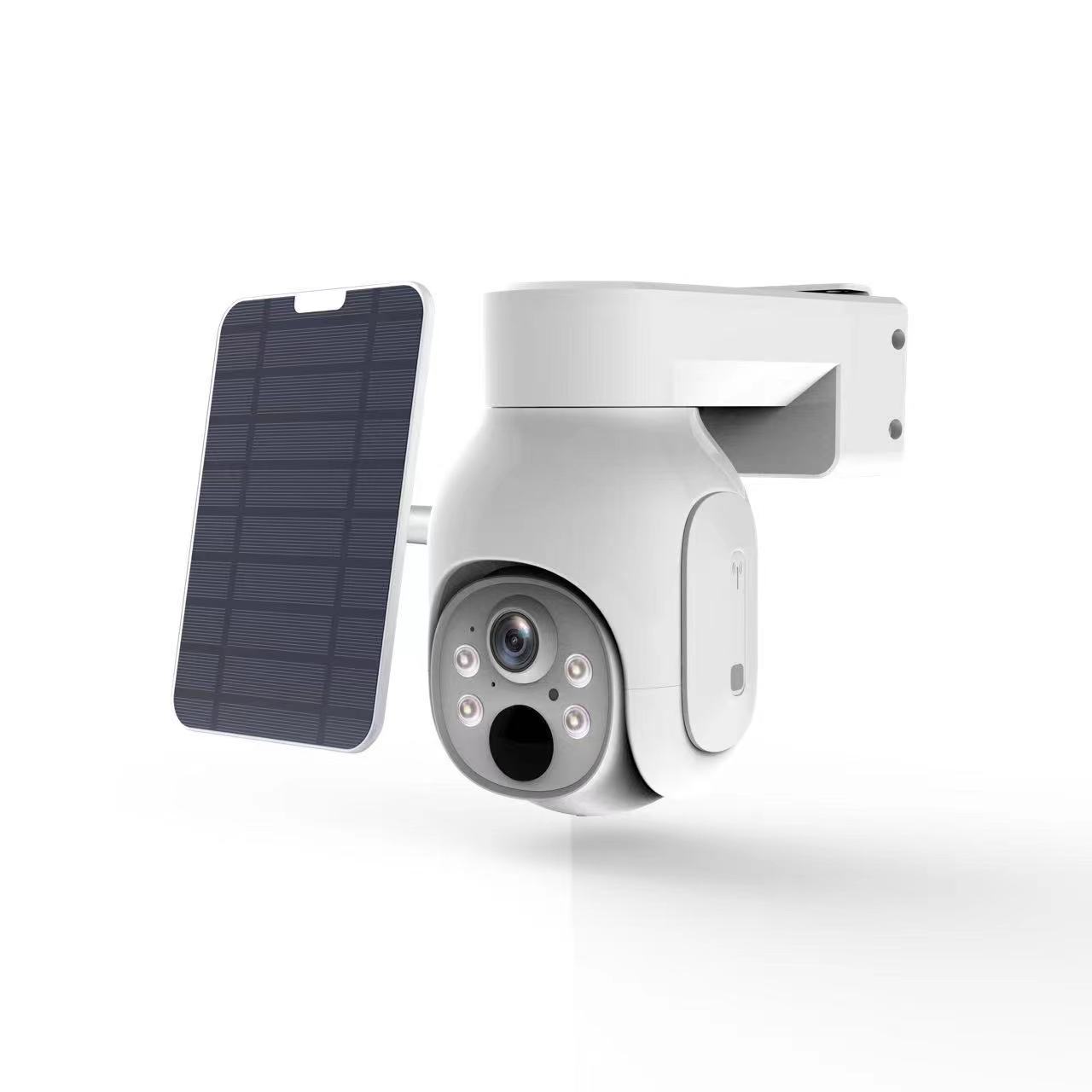

WIFI 3MP PT Camera Features:
Operation System | LiteOS,Embedded Linux real-time operate system |
Image Sensor | 1/2.9” CMOS Sensor |
Resolution | HD 3MP |
illumination | Color: 0.1 Lux,Black/White: 0.01 Lux |
Video Process | H.264/H.265 Video coding, support double-stream |
Image input | Main stream: 2304*1260@15fps; sub-stream:640*360@15fps |
Day&Night Switch | Auto/ Colorful/ Black&White |
3D R&D | Auto |
Mir/Flip | YES |
Video Coding | Dual-Stream:H.264/H265 2304x1260@25ps; H.264/H265 640x360@25fps |
Audio Coding | G.711 A-Law @ 16bits 8kbps |
Audio I/O | Support |
Wireless Data | 802.11b/g/n; |
Pan/Tilt | Support（Horizontal 355°Vertical 89°） |
Lens | 3.6mm |
Solar panel | 4W |
Cloud storage | YES |
Reset interface | YES |
Other functions | Motion detection;Alarm message push; support phone/pc view remotely;Color: Black/White |
